SMD FB-2 Double Fuse Block – Aluminum Busbar with Acrylic Cover

Description

Product Overview

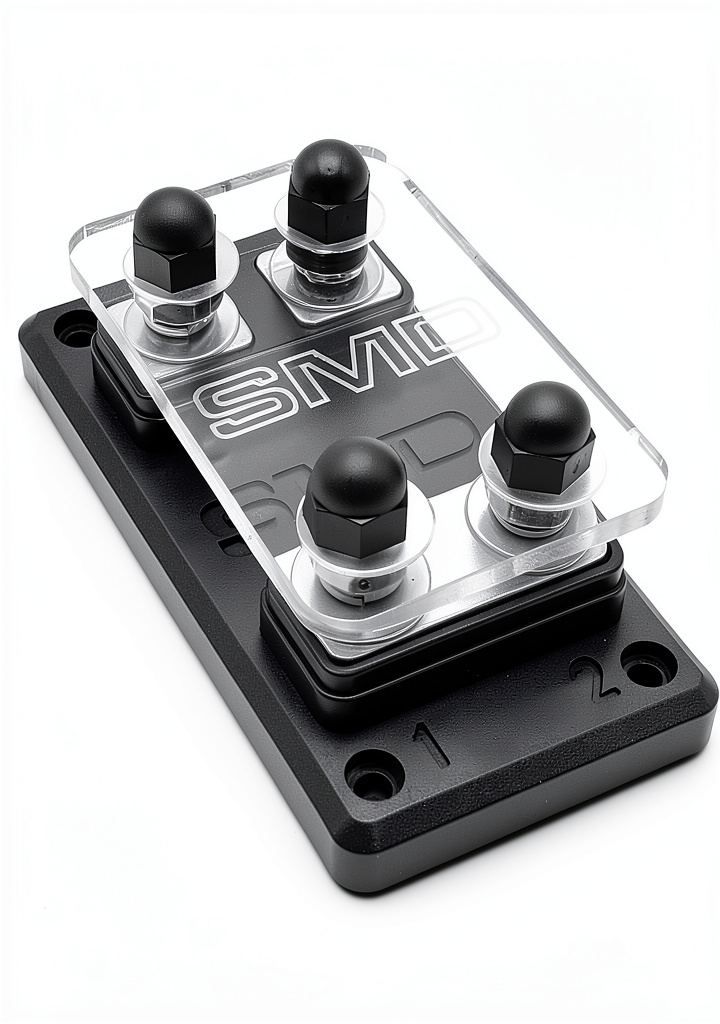

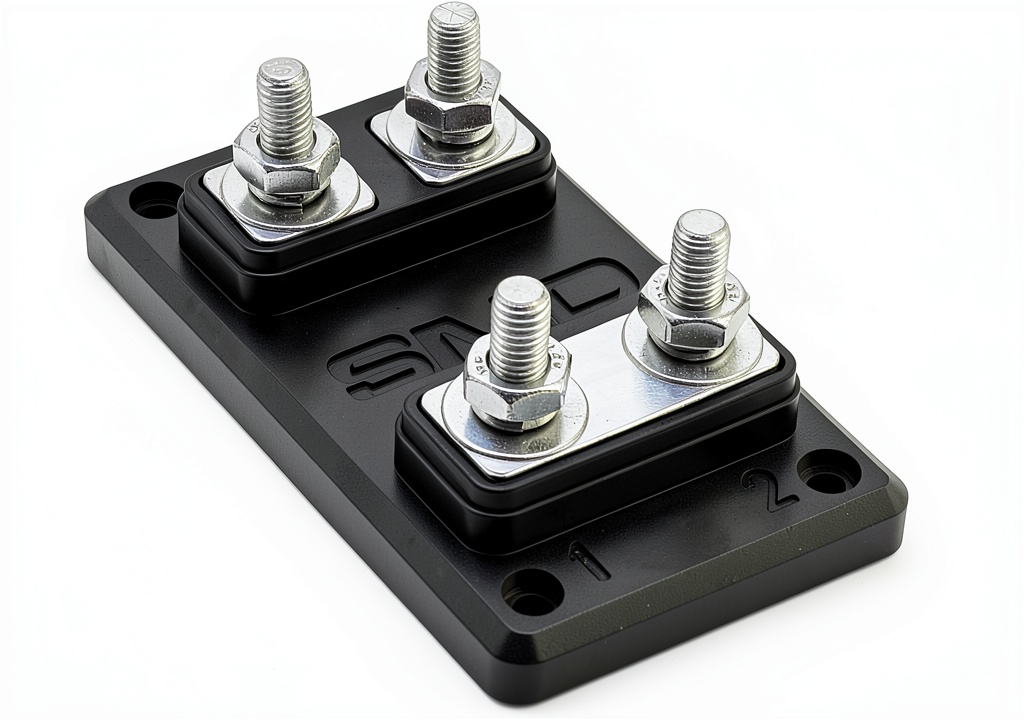

The SMD FB-2 Double Fuse Block is a precision‑engineered component designed for modern electrical distribution systems. Constructed from high‑grade aluminum, the busbar delivers excellent conductivity while resisting corrosion over the life of the installation. The clear acrylic cover provides instant visual access to the fuse status, eliminating the need for disassembly during routine checks. An injection‑molded high‑temperature base plate forms the structural backbone, ensuring the block remains stable under demanding thermal conditions. Dimensions of 5 × 2.75 × 2.25 inches and a weight of just over 10 ounces make the unit compact enough to fit tightly within standard panel enclosures while still offering ample space for wiring and connections. The FB2M model number identifies this specific configuration, and the product has been available since December 2019, earning a 4.6‑star rating from 79 verified customer reviews.

Usage

This fuse block is ideal for a wide range of applications, from residential home panels protecting lighting circuits and small appliances to commercial facilities where reliable overload protection is critical for HVAC, refrigeration, and office equipment. Installers appreciate the straightforward mounting process: the block slides into a standard panel slot, aligns with the busbar, and secures with a single set of screws. Once installed, the clear acrylic cover allows electricians and maintenance personnel to quickly verify fuse integrity without removing the block, reducing downtime during inspections. The high‑temperature base plate tolerates the heat generated by adjacent breakers, making the FB‑2 suitable for panels that experience heavy load cycles. Its robust construction also withstands vibration and minor impacts, which is valuable in environments such as workshops, data centers, and industrial settings where equipment may be subject to movement.

Why Choose Us

Choosing the SMD FB-2 means selecting a product backed by rigorous quality assurance processes. Each block undergoes multiple stages of testing, including thermal cycling, electrical load verification, and mechanical stress analysis, to guarantee performance under real‑world conditions. The injection‑molded base plate is produced using a proprietary high‑temperature polymer that resists deformation, ensuring the block maintains its alignment even after prolonged exposure to heat. SMD (Steve Meade Designs) leverages over a decade of experience in electrical component manufacturing, and the FB‑2 reflects that heritage through its meticulous material selection and precision molding. Customers also benefit from a responsive support team that provides technical assistance, installation guidance, and a clear warranty policy covering manufacturing defects for up to two years. This combination of durability, ease of use, and after‑sales service distinguishes the FB‑2 from generic alternatives on the market.

Key Features

• Aluminum busbar delivers superior conductivity and long‑term corrosion resistance.
• Clear acrylic cover enables instant visual inspection of fuse condition.
• Injection‑molded high‑temperature base plate ensures stability under heavy load cycles.
• Compact dimensions fit standard panel slots, simplifying installation and saving space.
• Dedicated customer support and a two‑year warranty provide peace of mind after purchase.

FAQ

What size fuses are compatible with the FB‑2 block?

The FB‑2 is designed to accept standard 5 × 20 mm blade fuses, which are commonly used in residential and commercial panels for protecting lighting and small‑appliance circuits.

Can the acrylic cover be replaced if it becomes damaged?

Yes, the cover is a separate component that can be removed and replaced without affecting the busbar or base plate. Replacement covers are sold separately and match the original dimensions exactly.

Is the block suitable for outdoor or damp environments?

While the FB‑2 is rated for indoor use, its aluminum construction and sealed acrylic cover provide a degree of moisture resistance. For truly outdoor or wet locations, a fully sealed enclosure is recommended.

How does the high‑temperature base plate improve performance?

The base plate is formulated from a polymer that retains its shape at temperatures up to 150 °C, preventing warping or loosening of the block when adjacent breakers generate heat during heavy load periods.

What is the recommended method for mounting the FB‑2 in a panel?

Mount the block into a standard 1‑inch panel slot, align the busbar with the panel’s bus rail, and secure it using the provided screws. Ensure the acrylic cover is seated fully to maintain a clear view of the fuses.
